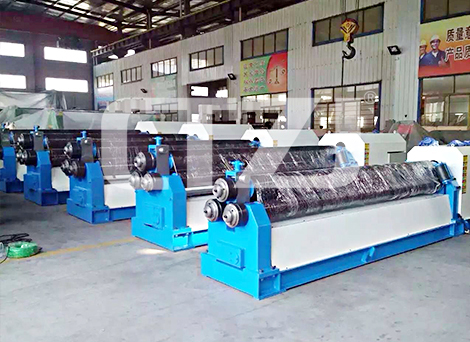

产品特点：本机为机械对称型卷板机，通过上辊的下压和上、下辊的对滚工作。主减速机输出轴通过一组齿轮传动到两下辊，辊轴旋动方向的变换由主电机换向而获得。一根上辊、二根下辊，升降丝杆、蜗轮及一些辅助零件组成。...
全国免费服务热线：180-6895-499960秒高清在线安全服务 30几分钟技木函复 24每小时系统措施
规格 型号 | 卷板料厚 (mm) | 卷板尺寸 (mm) | 上辊厚度 (mm) | 变频电动机输出 (kw) | 形壮厚度 (mm) |
| W11-4X1500 | 1-4 | 1500 | 140 | 3 | 2800x800x1100 |
| W11-4X2000 | 1-4 | 2000 | 160 | 4 | 3400x800x1100 |
| W11-6X2000 | 1-6 | 2000 | 170 | 4 | 3600x900x1350 |
| W11-6X2500 | 1-6 | 2500 | 190 | 5.5 | 4000x1000x1350 |
| W11-8X2000 | 1-8 | 2000 | 190 | 5.5 | 3500x1000x1350 |
| W11-8X2500 | 2-8 | 2500 | 220 | 7.5 | 4300x1000x1400 |
| W11-12X2000 | 3-12 | 2000 | 240 | 7.5 | 3800x1000x1350 |
| W11-12X2500 | 3-12 | 2500 | 260 | 11 | 4600x1200x1450 |
| W11-16X2000 | 3-16 | 2000 | 260 | 11 | 4100x1200x1450 |
| W11-16X2500 | 3-16 | 2500 | 280 | 11 | 4800x1400x1450 |
| W11-16X4000 | 4-16 | 4000 | 370 | 22 | 6600x1700x1650 |
| W11-20X2000 | 3-20 | 2000 | 280 | 11 | 4300x1400x1450 |
| W11-20X2500 | 3-20 | 2500 | 340 | 15 | 5000x1500x1550 |
| W11-20X3100 | 4-20 | 3100 | 380 | 22 | 4600x1700x1650 |
| W11-20X4000 | 4-20 | 4000 | 420 | 30 | 7300x1900x1900 |
| W11-25X2000 | 3-25 | 2000 | 340 | 15 | 4600x1700x1650 |
| W11-25X2500 | 4-25 | 2500 | 380 | 22 | 5100x1700x1650 |
| W11-25X3100 | 5-25 | 3100 | 420 | 30 | 6500x1900x1900 |
| W11-30X2500 | 5-30 | 2500 | 420 | 30 | 5800x1900x1900 |
| W11-30X3100 | 5-30 | 3100 | 450 | 37 | 6600x2000x2000 |
| W11-35X2500 | 5-35 | 2500 | 450 | 37 | 5900x2000x2000 |
| W11-40X2500 | 6-40 | 2500 | 520 | 37 | 6000x2100x2200 |
| W11-40X3100 | 6-40 | 3100 | 550 | 45 | 6800x2200x2300 |
| W11-40X2500 | 6-45 | 2500 | 550 | 37 | 6300x2200x2300 |
| W11-50X2500 | 8-50 | 2500 | 610 | 45 | 6500x2400x2500 |

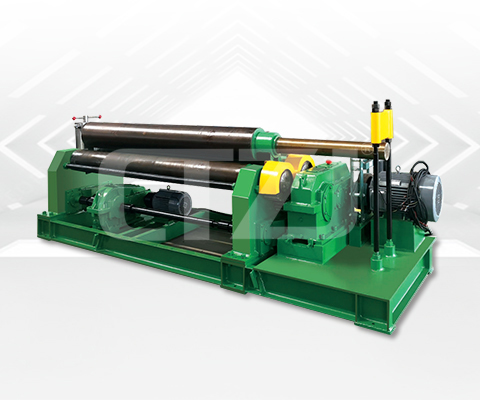

W11S特大型上辊全能式三辊卷板机

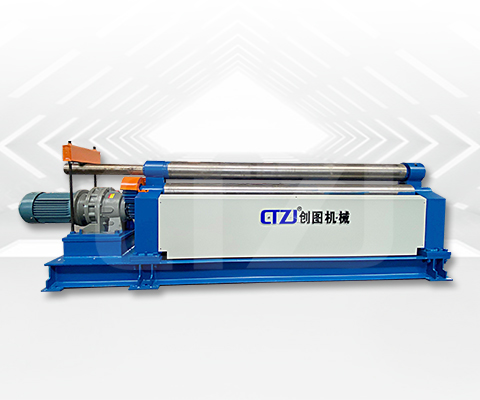

W11S中小型上辊萬能式三辊卷板机
W11S不同规格的中小型上辊全面、万能式三辊卷板机
